LASERADD-PR-500

Independent development of control and path planning software system

LASERADD-PR-500

Introduce

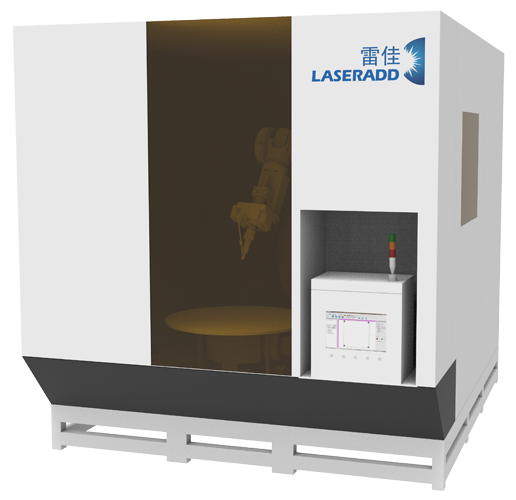

The large area plasma additive manufacturing equipment developed based on the robot platform, with forming size of 500mm x500mm x400mm, has the advantages of high forming efficiency of plasma directional energy deposition and good surface quality of milling processing, and can realize efficient and high-quality forming and in-situ repair of complex structures.

Advantage

High efficiency, high precision

High efficiency, high precision additive manufacturing and field repair of large structural parts

Free size

500mm×500mm×400mm Large molding size (expandable)

A lower cost

The forming cost is lower, the efficiency is higher, and the milling compound can meet the requirements of higher dimensional accuracy

flexibility

The double 6-axis linkage system of robot and positioner makes the production of parts more flexible

Parameter

  • Device name/model

    Molding size

    Forming method

    Molding material

    The operating system

    The control software

    The data format

    Power supply and power consumption

    External dimensions of equipment

    The environment temperature

  • LASERADD-PR-500

    500 mm * 500 mm * 400 mm

    Coaxial wire feeding, powder feeding, cutting

    Stainless steel, cobalt chromium alloy, titanium alloy, high temperature alloy, die steel and other metal powder

    Windows 7 64 bits

    Independent development of control and path planning software system

    STL file or other convertible format

    380V 50/60Hz 45KW

    3000mm (L) *3300mm (W) *3600 (H)

    Operating temperature 15-26℃
