DiMetal-450E

Application: mould, automotive, aerospace, nuclear military, orthopaedic medicine

DiMetal-450E

Introduce

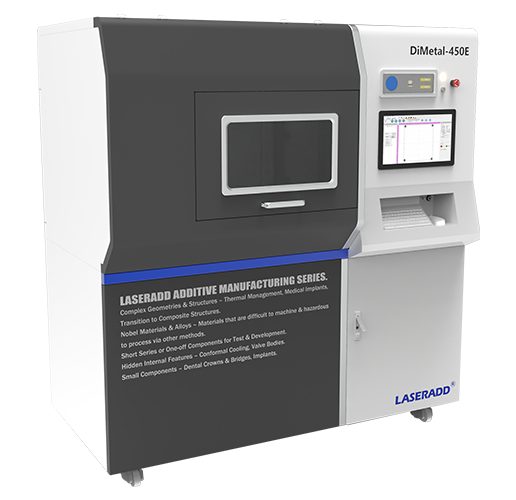

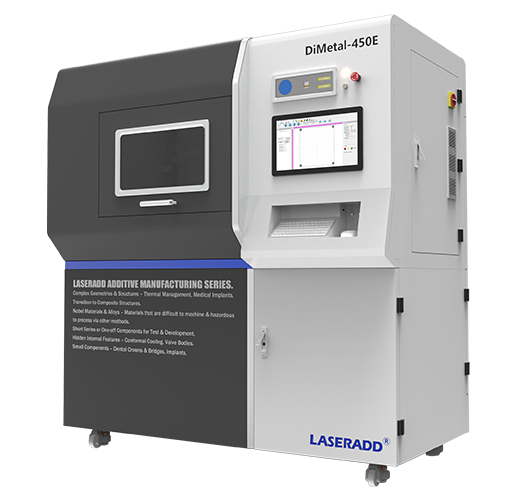

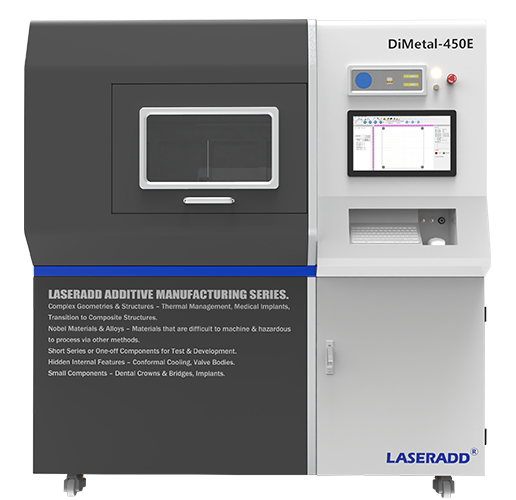

Dimetal-450e is a highly efficient solution for large-size metal 3D printing applications. It adopts multi-laser and multi-galvanometer forming scheme in the same format, which can improve the forming efficiency by more than 80%. It can be used in mold, automobile, aerospace, nuclear power military industry, orthopedic medicine and other fields.

Application

  • Nuclear power military industry
  • automobile
  • mould
  • orthopaedics
  • Aerospace

Advantage

Large size multi - laser homogeneous surface forming

The forming efficiency can be increased by more than 80% and the forming efficiency of large size parts can be realized

Intelligent operation design

Unattended automatic operation printing, automatic/manual control free switch, self-diagnosis function, safety protection and automatic fault alarm

Fresh air protection system

Lejia fresh air system efficient operation, field mirror air shower shielding protection to ensure high quality and precision forming

Fully pop-up piston

Equipped with fully pop-up piston platform, convenient and fast replacement of all kinds of metal powder, 100% prevent the occurrence of cross-contamination when replacing the powder

Parameter

  • Device name/model

    laser

    Molding size

    Feeding way

    Molding material

    The forming efficiency

    The control software

    The data format

    Power supply and power consumption

    External dimensions of equipment

  • DiMetal-450E

    Infrared ytterbium doped fiber laser, 500W

    450mm*250mm*300mm (net molding size)

    Feeding powder, bidirectional variable speed powder spreading

    Stainless steel, copper alloy, die steel, aluminum alloy and other metal powder

    90-200g/h

    Independent development of control and path planning software system

    STL file or other convertible format

    220V 50/60 hz 16A 6KW three-phase power

    1950mm (L) *1110mm (W) *2050 (H)
