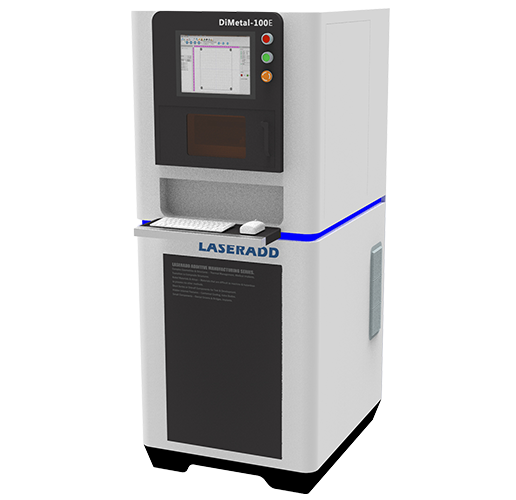

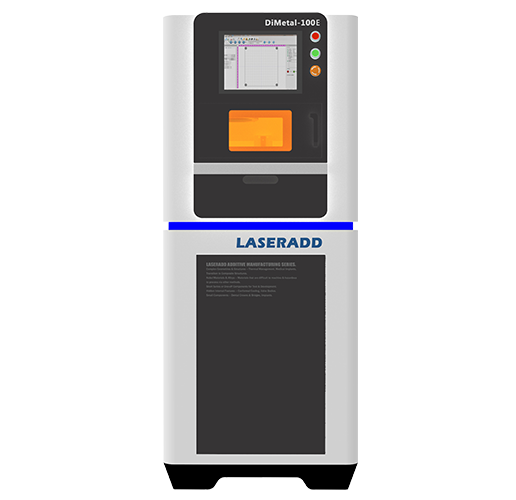

DiMetal-100E

Application: Dentistry, orthopedics, scientific research, education

DiMetal-100E

Introduce

Dimetal-100E is a cost-effective, low-cost metal 3D printer with a compact shape, upgraded cavity, user-friendly design and easy to operate. Open source software data, can print a variety of materials, supporting software operation training services and teaching services. Mainly used in dentistry, orthopedics and other precision small parts research and development production; Scientific research, education, experiments, etc.

Application

  • orthopaedics
  • education
  • scientific research
  • dentistry

Advantage

Cost-effective configuration

Cost-effective configuration, low-cost operation, streamlined design, stable performance, simple and convenient operation

Fresh air protection system

Lejia fresh air system efficient operation, field mirror air shower shielding protection to ensure high quality and precision forming

Software data is open source

Open source software data, can print a variety of materials, widely used

Fully pop-up piston

Equipped with fully pop-up piston platform, convenient and fast replacement of all kinds of metal powder, 100% prevent the occurrence of cross-contamination when replacing the powder

Parameter

  • Device name/model

    laser

    Scanning system

    Scanning speed

    Molding cavity size

    The thickness of the layered

    Feeding way

    Molding material

    The operating system

    The control software

    The data format

    Power supply and power consumption

    External dimensions of equipment

    The environment temperature

  • DiMetal-100E

    Infrared Ytterbium doped fiber laser, 200W (other power lasers are supported)

    High precision scanning galvanometer

    Top 7.8 m/s

    100mm*100mm*100mm

    0.02 mm to 0.2 mm

    One way for powder

    Stainless steel, cobalt chromium alloy, titanium alloy, die steel and other metal powder

    Windows 7 64 bits

    Independent development of control and path planning software system

    STL file or other convertible format

    220 v 50 Hz 3Kw

    730mm (L) *920mm (W) *1770 (H)

    Operating temperature 15-30℃
